產品特性
? 玻璃鈍化芯片
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達600w
? 高可靠性應用，符合汽車級AEC -Q101認證標準
? 低漏電流
? 單、雙向單元
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS
機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-750，方法2026可焊
? 極性：除雙極性外有色帶的一端為陰極
? 安裝位置：任何

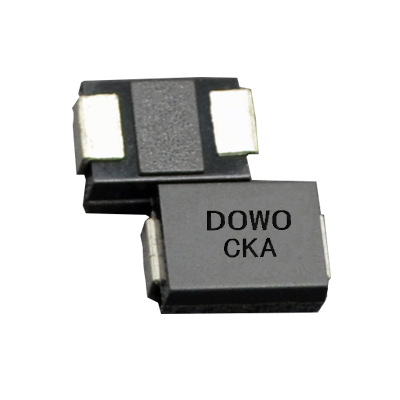

| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|
SMB/DO-214AA |
12.20 |
13.5 |
1 |
1 |
11.0 |
32.97 |
18.2 |
|
|
|
SMB/DO-214AA |
13.30 |
14.70 |
1 |
1 |
12.0 |
30.15 |
19.9 |
|
|
|
SMB/DO-214AA |
14.40 |
15.90 |
1 |
1 |
13.0 |
27.91 |
21.5 |
|
|
|
SMB/DO-214AA |
15.60 |
17.20 |
1 |
1 |
14.0 |
25.86 |
23.2 |
|
|
|
SMB/DO-214AA |
16.70 |
18.50 |
1 |
1 |
15.0 |
24.59 |
24.4 |
|
|
|
SMB/DO-214AA |
17.80 |
19.70 |
1 |
1 |
16.0 |
23.08 |
26.0 |
|
|
|
SMB/DO-214AA |
18.90 |
20.90 |
1 |
1 |
17.0 |
21.74 |
27.6 |
|
|
|
SMB/DO-214AA |
20.00 |
22.10 |
1 |
1 |
18.0 |
20.55 |
29.2 |
|
|
|
SMB/DO-214AA |
21.10 |
23.30 |
1 |
1 |
19.0 |
19.49 |
30.8 |
|
|
|
SMB/DO-214AA |
22.20 |
24.50 |
1 |
1 |
20.0 |
18.52 |
32.4 |
|
|
|
SMB/DO-214AA |
24.40 |
26.90 |
1 |
1 |
22.0 |
16.90 |
35.5 |
|
|
|
SMB/DO-214AA |
26.70 |
29.50 |
1 |
1 |
24.0 |
15.42 |
38.9 |
|
|
|
SMB/DO-214AA |
28.90 |
31.90 |
1 |
1 |
26.0 |
14.25 |
42.1 |
|
|
|
SMB/DO-214AA |
31.10 |
34.40 |
1 |
1 |
28.0 |
13.22 |
45.4 |
|
|
|
SMB/DO-214AA |
33.30 |
36.80 |
1 |
1 |
30.0 |
12.40 |
48.4 |
|
|
|
SMB/DO-214AA |
36.70 |
40.60 |
1 |
1 |
33.0 |
11.26 |
53.3 |
|
|
|
SMB/DO-214AA |
40.00 |
44.20 |
1 |
1 |
36.0 |
10.33 |
58.1 |
|
|
|
SMB/DO-214AA |
44.40 |
49.10 |
1 |
1 |
40.0 |
9.30 |
64.5 |
|
|
|
SMB/DO-214AA |
47.80 |
52.80 |
1 |
1 |
43.0 |
8.65 |
69.4 |
|
|
|
SMB/DO-214AA |
50.00 |
55.30 |
1 |
1 |
45.0 |
8.25 |
72.7 |
|
|
|
SMB/DO-214AA |
53.30 |
58.90 |
1 |
1 |
48.0 |
7.75 |
77.4 |
|
|
|
SMB/DO-214AA |
56.70 |
62.70 |
1 |
1 |
51.0 |
7.82 |
82.4 |
|
|
|
SMB/DO-214AA |
60.00 |
66.30 |
1 |
1 |
54.0 |
6.89 |
87.1 |
|
|
|
SMB/DO-214AA |
64.40 |
71.20 |
1 |
1 |
58.0 |
6.41 |
93.6 |
|
|
|
SMB/DO-214AA |
66.70 |
73.70 |
1 |
1 |
60.0 |
6.20 |
96.8 |
|
|
|
SMB/DO-214AA |
71.10 |
78.60 |
1 |
1 |
64.0 |
5.83 |
103.0 |
|
|
|
SMB/DO-214AA |
77.80 |
86.00 |
1 |
1 |
70.0 |
5.31 |
113.0 |
|
|
|
SMB/DO-214AA |
83.30 |
92.10 |
1 |
1 |
75.0 |
4.96 |
121.0 |
|
|
|
SMB/DO-214AA |
86.70 |
95.80 |
1 |
1 |
78.0 |
4.76 |
126.0 |
|
|
|
SMB/DO-214AA |
94.40 |
104.00 |
1 |
1 |
85.0 |
4.38 |
137.0 |
|
|
|
SMB/DO-214AA |
100.00 |
111.00 |
1 |
1 |
90.0 |
4.11 |
146.0 |
|
|
|
SMB/DO-214AA |
111.00 |
123.00 |
1 |
1 |
100.0 |
3.70 |
162.0 |
|
|
|
SMB/DO-214AA |
122.00 |
135.00 |
1 |
1 |
110.0 |
3.39 |
177.0 |
|
|
|
SMB/DO-214AA |
133.00 |
147.00 |
1 |
1 |
120.0 |
3.11 |
193.0 |
|
|
|
SMB/DO-214AA |
144.00 |
159.00 |
1 |
1 |
130.0 |
2.87 |
209.0 |
|
|
|
SMB/DO-214AA |
155.00 |
171.00 |
1 |
1 |
140.0 |
2.65 |
226.8 |
|
|
|
SMB/DO-214AA |
167.00 |
185.00 |
1 |
1 |
150.0 |
2.47 |
243.0 |
|
|
|
SMB/DO-214AA |
178.00 |
197.00 |
1 |
1 |
160.0 |
2.32 |
259.0 |
|
|
|
SMB/DO-214AA |
189.00 |
209.00 |
1 |
1 |
170.0 |
2.18 |
275.0 |
|
