當前位置：東沃電子官網首頁>產品中心>TVS二極管>車規級TVS二極管>TP5.0SMDJ系列

TP5.0SMDJ系列

東沃電子TP5.0SMDJ系列，車規級TVS瞬態抑制二極管，符合AEC-Q101認證標準，品質卓越，型號齊全，免費提供樣品和產品測試服務。
封裝形式：SMC/DO-214AB
脈沖功率：5000 W
工作電壓：10.0 V-58.0 V
脈沖電流：53.50 A-294.12 A
響應時間：<1.0 PS

產品詳情

產品特性
? 玻璃鈍化芯片
? TJ = 175℃兼容性，適用于高可靠性和汽車保護要求
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達5000w
? 高可靠性應用，符合汽車級AEC -Q101認證標準
? 可通過ISO 7637-2拋負載測試要求
? 低漏電流
? 單、雙向單元
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS

機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-750，方法2026可焊
? 極性：除雙極性外有色帶的一端為陰極
? 安裝位置：任何

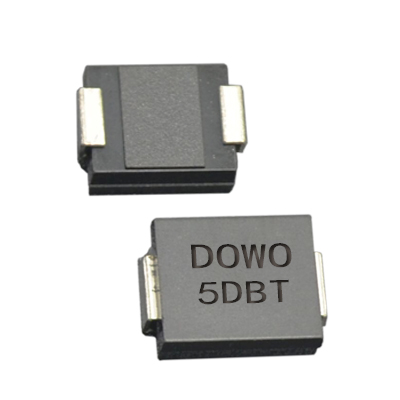

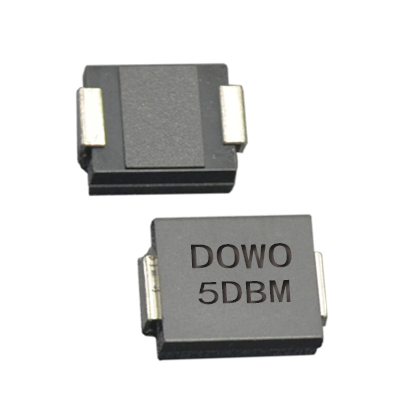

型號 圖片 封裝 VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) 下載

TP5.0SMDJ10A/TP5.0SMDJ10CA

SMC/DO-214AB

11.10

12.30

1

5

10.0

294.12

17.0

TP5.0SMDJ11A/TP5.0SMDJ11CA

SMC/DO-214AB

12.20

13.50

1

2

11.0

275.00

18.2

TP5.0SMDJ12A/TP5.0SMDJ12CA

SMC/DO-214AB

13.30

14.70

1

2

12.0

252.00

19.9

TP5.0SMDJ13A/TP5.0SMDJ13CA

SMC/DO-214AB

14.40

15.90

1

2

13.0

233.00

21.5

TP5.0SMDJ14A/TP5.0SMDJ14CA

SMC/DO-214AB

15.60

17.20

1

2

14.0

216.00

23.2

TP5.0SMDJ15A/TP5.0SMDJ15CA

SMC/DO-214AB

16.70

18.50

1

2

15.0

205.00

24.4

TP5.0SMDJ16A/TP5.0SMDJ16CA

SMC/DO-214AB

17.80

19.70

1

2

16.0

193.00

26.0

TP5.0SMDJ17A/TP5.0SMDJ17CA

SMC/DO-214AB

18.90

20.90

1

2

17.0

181.00

27.6

TP5.0SMDJ18A/TP5.0SMDJ18CA

SMC/DO-214AB

20.00

22.10

1

2

18.0

172.00

29.2

TP5.0SMDJ19A/TP5.0SMDJ19CA

SMC/DO-214AB

21.10

23.30

1

2

19.0

162.44

30.8

TP5.0SMDJ20A/TP5.0SMDJ20CA

SMC/DO-214AB

22.20

24.50

1

2

20.0

155.00

32.4

TP5.0SMDJ22A/TP5.0SMDJ22CA

SMC/DO-214AB

24.40

26.90

1

2

22.0

141.00

35.5

TP5.0SMDJ24A/TP5.0SMDJ24CA

SMC/DO-214AB

26.70

29.50

1

2

24.0

129.00

38.9

TP5.0SMDJ26A/TP5.0SMDJ26CA

SMC/DO-214AB

28.90

31.90

1

2

26.0

119.00

42.1

TP5.0SMDJ28A/TP5.0SMDJ28CA

SMC/DO-214AB

31.10

34.40

1

2

28.0

110.00

45.4

TP5.0SMDJ30A/TP5.0SMDJ30CA

SMC/DO-214AB

33.30

36.80

1

2

30.0

103.00

48.4

TP5.0SMDJ33A/TP5.0SMDJ33CA

SMC/DO-214AB

36.70

40.60

1

2

33.0

93.90

53.3

TP5.0SMDJ36A/TP5.0SMDJ36CA

SMC/DO-214AB

40.00

44.20

1

2

36.0

86.06

58.1

TP5.0SMDJ40A/TP5.0SMDJ40CA

SMC/DO-214AB

44.40

79.10

1

2

40.0

77.60

64.5

TP5.0SMDJ43A/TP5.0SMDJ43CA

SMC/DO-214AB

47.80

52.80

1

2

43.0

72.10

69.4

TP5.0SMDJ45A/TP5.0SMDJ45CA

SMC/DO-214AB

50.00

55.30

1

2

45.0

68.78

72.7

TP5.0SMDJ48A/TP5.0SMDJ48CA

SMC/DO-214AB

53.30

58.90

1

2

48.0

64.70

77.4

TP5.0SMDJ51A/TP5.0SMDJ51CA

SMC/DO-214AB

56.70

62.70

1

2

51.0

60.68

82.4

TP5.0SMDJ54A/TP5.0SMDJ54CA

SMC/DO-214AB

60.00

66.30

1

2

54.0

57.50

87.1

TP5.0SMDJ58A/TP5.0SMDJ58CA

SMC/DO-214AB

64.40

71.20

1

2

58.0

53.50

93.6
