PESD12VL1BA是什么元件？PESD12VL1BA有方向嗎？PESD12VL1BA參數怎么看？PESD12VL1BA哪家供應商有現貨？PESD12VL1BA價格多少？PESD12VL1BA一盤有多少pcs？PESD12VL1BA是哪家品牌的產品？PESD12VL1BA廠家是哪家？……關于“PESD12VL1BA”這顆熱銷ESD二極管，相信很多新老電子工程師都知道它的存在。那么，關于PESD12VL1BA這個料，您知道多少呢？

查閱電路保護器件廠家東沃電子（DOWOSEMI）推出的“ESD-PESD12VL1BA Datasheet”產品規格書可知：

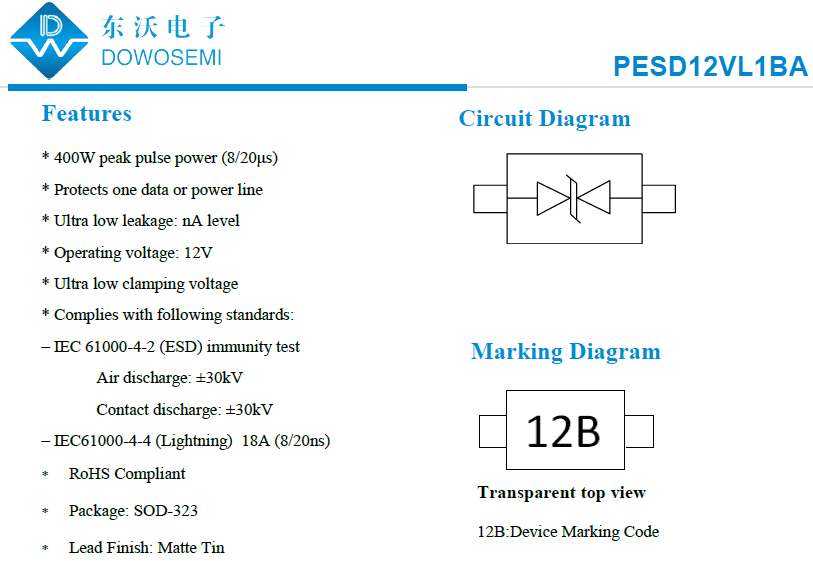

1）PESD12VL1BA簡介

The PESD12VL1BA is designed to replace multilayer varistors in portable applications such as cell phones, notebook computers and PDA’s, using monolithic sili-con technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting sensitive semiconductor compo-nents from damage. The PESD12VL1BA complies with the IEC 61000-4-2 (ESD) standard with ±15kV air and ±8kV contact discharge. The PESD12VL1BA is assembled into a lead-free SOD-323 package and will protect one unidirectional line. These devices will fit on the same PCB pad area as an 0805 MLV device.

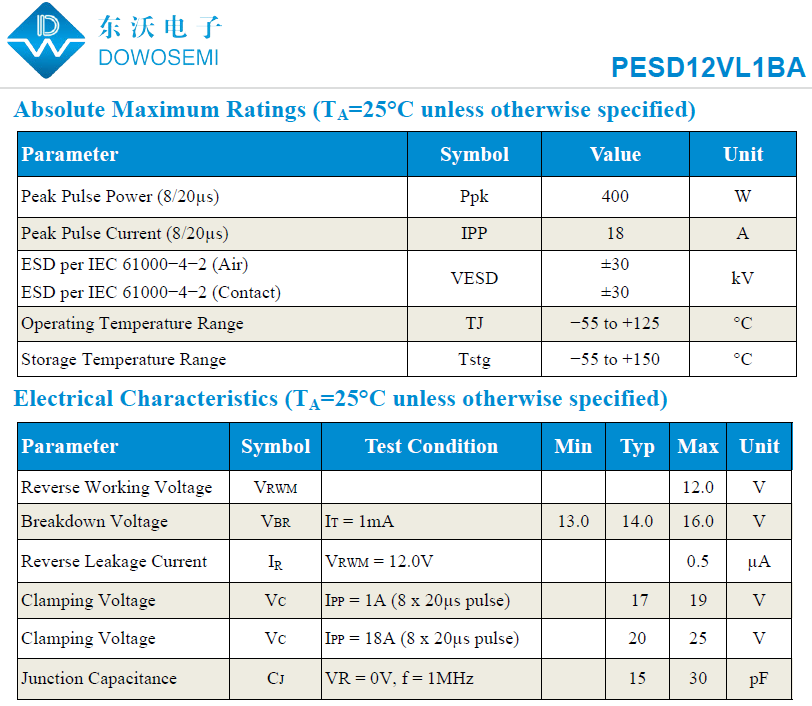

2）PESD12VL1BA參數

√ 峰值脈沖功率：400W
√ 峰值脈沖電流：18A
√ 工作電壓：12V
√ 最小擊穿電壓：13V
√ 最小擊穿電壓：16V
√ 鉗位電壓：20V
√ 漏電流：0.5uA
√ 結電容：15pF

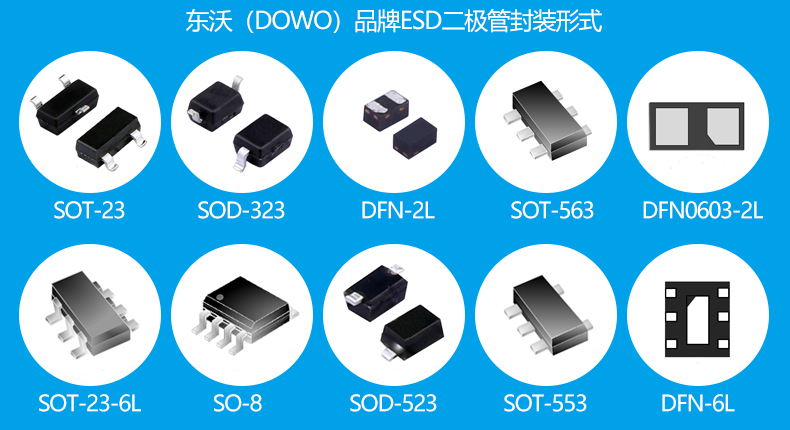

√ 封裝形式：SOD-323
√ 絲印標識：12B
√ 方向：雙向
√ 包裝：3000 pcs/Reel
√ Reel尺寸：7 inch

3）PESD12VL1BA應用

·Cellular Handsets and Accessories
·Personal Digital Assistants
·Notebooks and Handhelds
·Portable Instrumentation
·Peripherals
·Pagers Peripherals
·Desktop and Servers

根據上述信息可知，PESD12VL1BA是ESD二極管，常應用于各類通信端口中；雙向，在焊接時不需要區分正負極性；400W、12V、18A、SOD-323；一盤3000pcs；PESD12VL1BA價格，不同廠家供應的PESD12VL1BA價格可能不一樣。具體價格，采購ESD二極管PESD12VL1BA，竭誠歡迎廣大新老客戶前來東沃電子（DOWOSEMI），好品質、好交期、好價格、好服務、好賬期，詳情咨詢：136 7581 6901（微信同號）朱經理！
